| Brand Name : | Hainaisen |
| Model Number : | weihu1304 |
| Certification : | ISO9001 |
| Price : | To be negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000pcs per day |
| Delivery Time : | 5-7 work days |

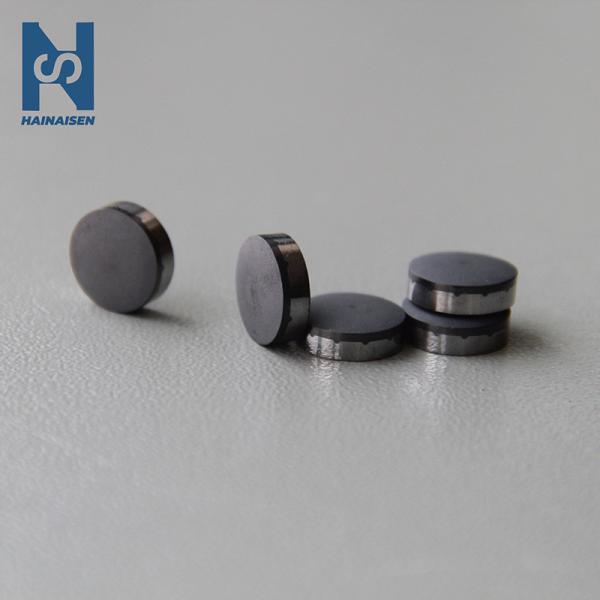

Arc Cutter PDC Cutter Manufacturers Polycrystalline Diamond Compact
Arc Angle PDC cutters are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.
PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.
| Cutter Model | Diameter(mm) | Total Height(mm) | Height of Diamond Layer | Chamfer of Diamond Layer |
| 0808 | 8.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1008 | 10.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1308 | 13.44±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1313 | 13.44±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1608 | 16.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1613 | 16.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1616 | 16.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1908 | 19.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1913 | 19.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1916 | 19.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2216 | 22.22±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2219 | 22.22±0.05 | 19.0±0.1 | 2.0±0.1 | 0.41±0.05 |
1, high hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented
carbide, which significantly reduces the frequency of replacing
drill bits.
3. Effective and stable drilling speed, protect equipment and
reduce drilling cost (accounting for 30%-40% of total cost)
Our Principle
We adhere to the principles of high quality, excellent service, and the courage to innovate. We also adhere to provide efficient products and quality services. Please feel free to contact us if you are interested in our drills. We are looking forward to cooperating with you!
FAQ
1. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
2. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
3. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
4. How do you guarantee your quality?
We select the advanced production technology and equipment, strictly control the whole production process, and inspect the finished drill bits. We can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
|
|
