Shaanxi Hainaisen Petroleum Technology Co.,Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Hainaisen |
| Model Number : | 94PA2 |
| Certification : | API & ISO 9001 |
| Price : | To be negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300pcs per day |
| Delivery Time : | 5-7 business days |

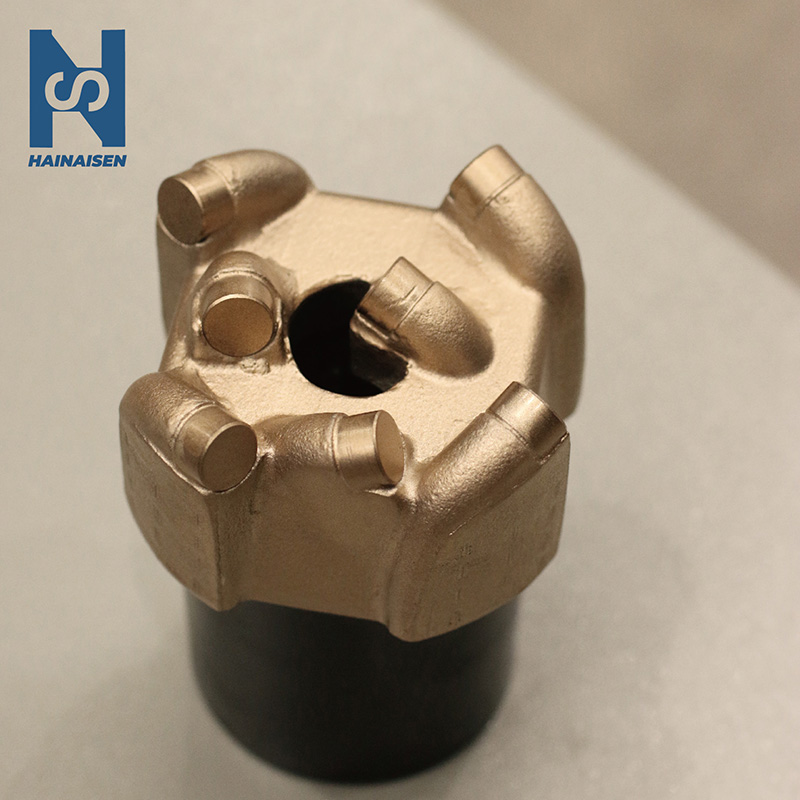

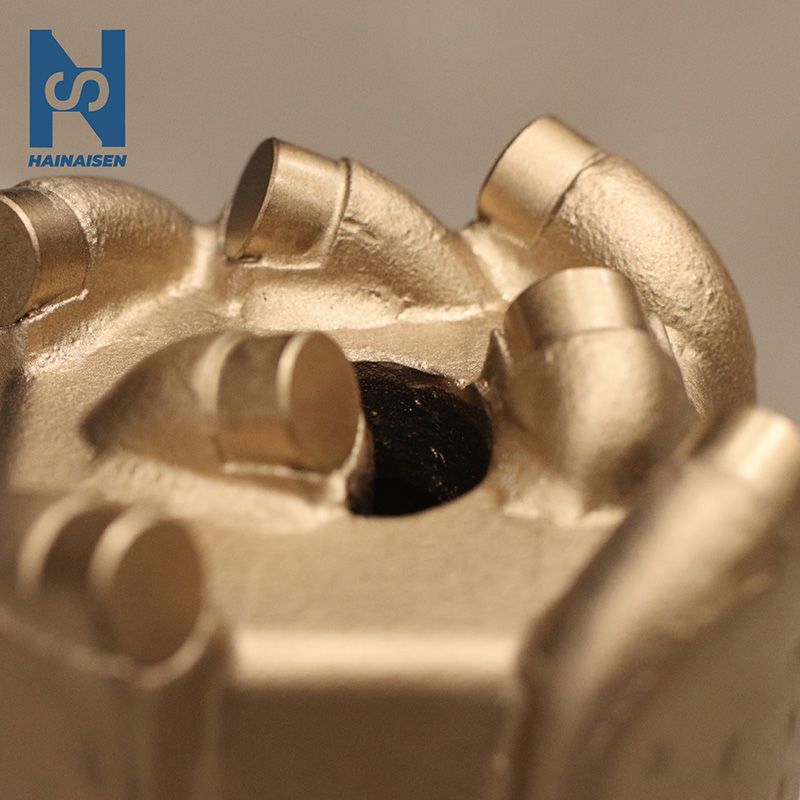

94mm PDC Well Drilling Bit PDC Drill Bit Flat Sintered Drill Bit
Characteristics:
1. The conical surface of the bit is shallow, and there is a big nozzle in the center of the bit. So the bit has the advantages of good guiding quality, cleaning power and strong aggressivity. The rock debris can expel from the bottom of the well as soon as possible. Avoiding secondary fragmentation and strong aggressive.
2. The body of the bit is made of high-quality steel and superior tungsten carbide powder in high temperature and low pressure sintering process. The gauge surface is inset by PDC cutters so that the body of the bit is durable and super strong abrasive resistant with good gauge performance.
3. The comprehensively high-performance cutters are welded on the body of the bit in argentalium-welding way. The cutters are very suiting the matrix well with good abrasive resistance and strong aggressivity.
4. The cutters (model: 1308) are asymmetrically inset in the circumferential direction of the blades with good cutting force/effect. The area of the cutter teeth exposure is wide. The bit is suitable for high impact resistant formation and the cutters can keep sharp so that the drilling speed can be improved.
| PRODUCT SPECIFICATIONS | |
| Size | 3- 7/10inch (Φ94mm) |
| Model number | 94PA2 |
| Body type | High Manganese Steel |
| Blade type | Flat |
| Number of blade | 7 |
| Primary PDC cutter size | 1308 |
| Number of nozzle | 1 |
| Diameter of nozzle | 25 mm |
| Gauge length | 30 mm |
| API connection | 63.5 with Stingers |
| Suitable formation | F≤12 |
| Application | Mining&Coal&Well |
| Quality | High Level |
| Package | Corrugated carton |
| MOQ | 10 Pieces |
| Certificate | ISO 9001 |
| OEM | Yes |
| Customized Size | Yes |
Package&Delivery
Our drills will ship within 5 days after 50% full payment is
confirmed. The drill bits will be shipped by sea or air as your
request. And if you have any other questions, please contact us
freely. Thanks!
Our Principle
We adhere to the principles of high quality, high quality service,
and innovation. We also insist on providing efficient products and
quality services. If you are interested in our drills, please feel
free to contact us. We are looking forward to cooperating with you!
FAQ
Q1: Are you a trading company or manufacturer?
A: We are a PDC Drilling Bits factroy in China.
Q2: Where is your manufacturer?
A: Our factory is located in Jing Wei Industrial Park of Economic
and Technological Development Zone in Xi'an, China.
Q3: what is the time about the delivery?
A: The lead time depend on quantity of order. Usually shipped by
sea, small order or urgent order we can send you by air after
received your agreement. According the distance from China to your
port, usually from China to European about 25 days. To West of
American 20 days.
Q4:Why you choose us?
A:We are factory of drill bits, so the price is affordable, and the
quality can be controlled. Also, we can do customized products
according to client's request.
Our promises: reasonable prices, short production period, and
satisfactory after-sales services.
|
|
