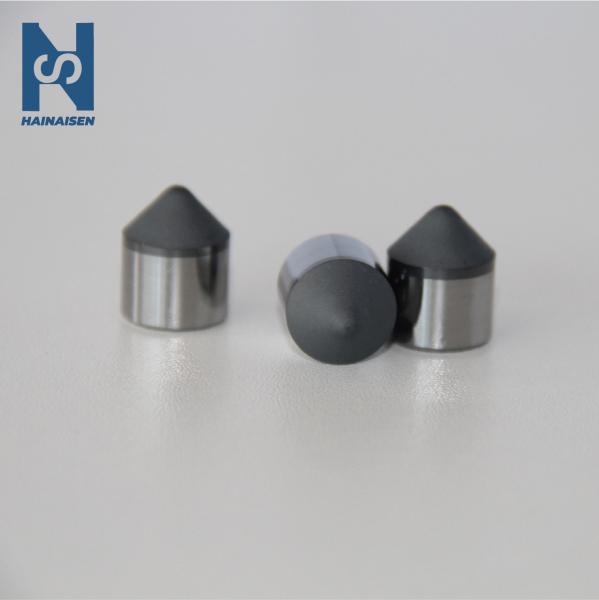

PDC Cutter Tungsten Carbide Cutters For Drilling Tools Pdc Diamond
PDC tools are mainly used for oil drilling equipment and consumable parts of oil drill bits, coal drill bits and machining tools. They are made of high quality synthetic diamond powder and tungsten carbide powder. PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and are suitable for use in a wide range of drilling tools.
| Product Model | Diameter | Height | SR Radius of Dome | Exposed Height |
| C0606 | 6.421 | 6.350 | 2 | 2.4 |
| C0609 | 6.400 | 9.300 | 1.5 | 3.3 |
| C1114 | 11.176 | 13.716 | 2.0 | 5.5 |
| C1210 | 12.000 | 10.000 | 2.0 | 6.0 |
| C1214 | 12.000 | 14.500 | 2 | 6 |
| C1217 | 12.000 | 17.000 | 2.0 | 6.0 |
| C1218 | 12.000 | 18.000 | 2.0 | 6.0 |
| C1310 | 13.700 | 9.855 | 2.3 | 6.4 |
| C1313 | 13.440 | 13.200 | 2 | 6.5 |
| C1315 | 13.440 | 15.000 | 2.0 | 6.5 |
| C1316 | 13.440 | 16.500 | 2 | 6.5 |
| C1317 | 13.440 | 17.050 | 2 | 6.5 |
| C1318 | 13.440 | 18.000 | 2.0 | 6.5 |
| C1319 | 13.440 | 19.050 | 2.0 | 6.5 |
| C1420 | 14.300 | 20.000 | 2 | 6.5 |
| C1421 | 14.870 | 21.000 | 2.0 | 6.2 |
| C1621 | 15.880 | 21.000 | 2.0 | 7.9 |
| C1925 | 19.050 | 25.400 | 2.0 | 9.8 |
| C2525 | 25.400 | 25.400 | 2.0 | 10.9 |
| C3028 | 29.900 | 28.000 | 3 | 14.6 |
| C3129 | 30.500 | 28.500 | 3.0 | 14.6 |
FAQ
1. Are you a trading company or manufacturer?
We have been a professional manufacturer of PDC bits since 2013.
2. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
3. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
|
|
