| Brand Name : | Hainaisen |
| Model Number : | 173PA2 |
| Certification : | API & ISO 9001 |
| Price : | To be negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 300pcs per day |
| Delivery Time : | 5-7 business days |

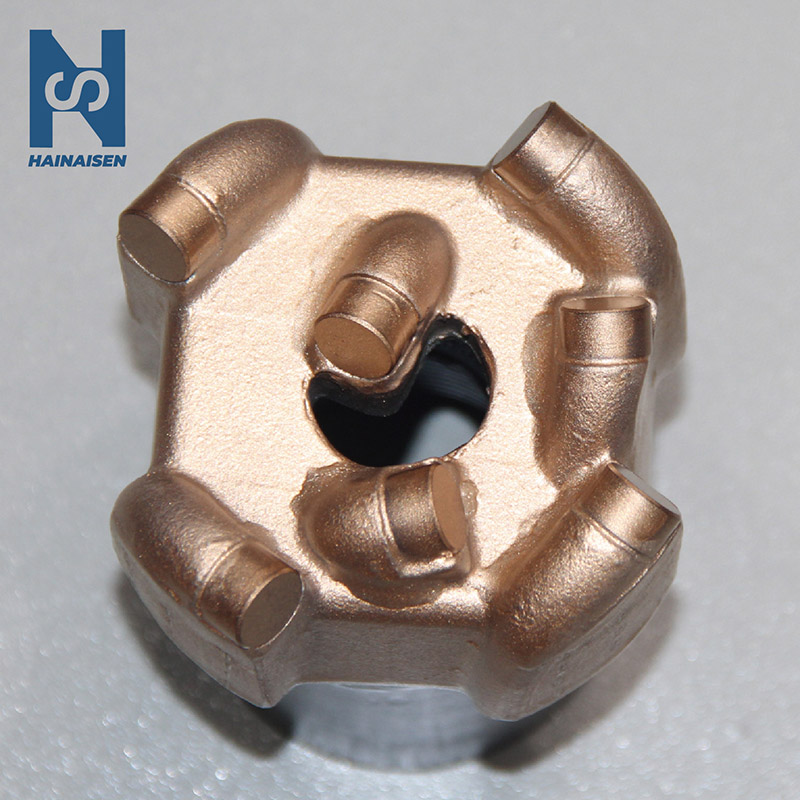

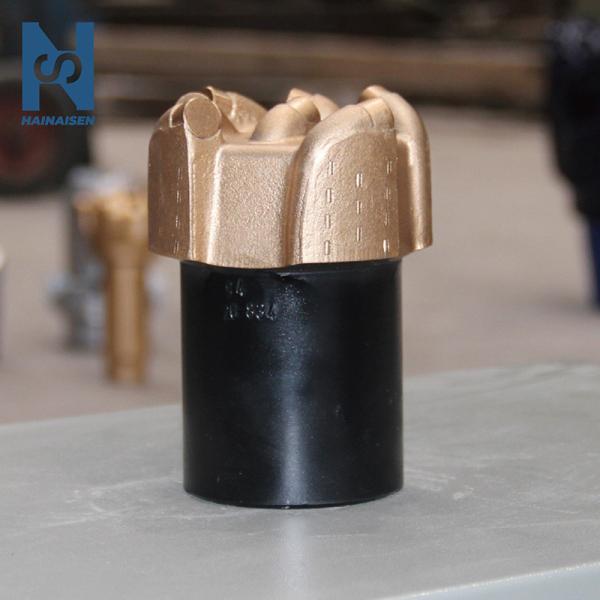

6inch PDC Oil Drill Bit Rock Drill Bit Water Drill Bit PDC Bit
Characteristics:
1. The taper surface of the drill bit is a shallow taper surface,
with strong guidance and a large nozzle structure in the center.
The cleaning effect is good, so that the rock powder can be
discharged from the bottom and the secondary crushing phenomenon
can be avoided as soon as possible, which has a strong
aggressiveness.
2. The drill body is made of high-quality steel and high-quality
tungsten carbide powder. Using high temperature and low pressure
sintering process, the surface of the instrument is inlaid with
diamond polycrystalline. The drill body is super wear-resistant and
has good gauge performance, making the drill body durable.
3. Select comprehensive high-performance composite sheet, and use
silver-lead welding to weld the composite sheet and the drill body
together. The matrix and the composite sheet are well combined,
with high abrasiveness and strong erosiveness.
4. The drill bits are unevenly distributed along the circumference
of the blade. The cutting tooth type is 1308, the cutting effect is
good, and the exposed teeth of the composite sheet are large. It is
suitable for high impact resistant formations.
| PRODUCT SPECIFICATIONS | |
| Size | 173mm |
| Model number | 173PA2 |
| Body type | High Manganese Steel |
| Primary PDC cutter size | 1308 |
| API connection | API 3-1/2 REG |
| Suitable formation | F≤12 |
| Application | Mining&Coal&Well |
| Quality | High Level |
| Package | Corrugated carton |
| MOQ | 10 Pieces |
| Certificate | ISO 9001 |
| OEM | Yes |
| Customized Size | Yes |
Package&Delivery
Our drills will ship within 5 days after 50% full payment is confirmed. The drill bits will be shipped by sea or air as your request. And if you have any other questions, please contact us freely. Thanks!
Our Principle
We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and quality services. If you are interested in our drills, please feel free to contact us. We are looking forward to cooperating with you!
FAQ
1. Are you a trading company or manufacturer?
We have been a professional manufacturer of PDC bits since 2013.
2. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
3. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
4. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
|
|
