Shaanxi Hainaisen Petroleum Technology Co.,Ltd
4 Years
| Ask Lasest Price | |
| Brand Name : | Hainaisen |
| Model Number : | pinghu1308 |
| Certification : | iso9001 |
| Price : | To be negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1000pcs per day |
| Delivery Time : | 5-7 work days |

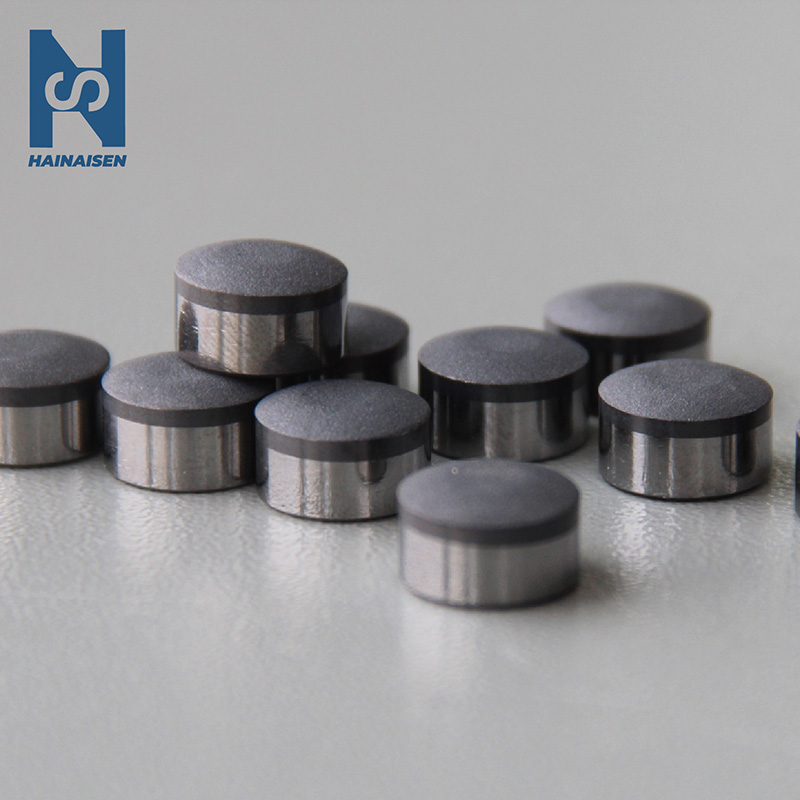

Flat Arc Tooth Cutter PDC Cutter Polycrystalline Diamond Compact
Flat Arc Tooth PDC cutters are mainly used for oil drilling equipment and wearing parts of oil drill bits, coal drill bits and machining tools. They are made from high-quality synthetic diamond powder and tungsten carbide powder.
PDC tools combine the high hardness and wear resistance of diamond and tungsten carbide and can be used in a wide variety of drill tools.
| Cutter Model | Diameter(mm) | Total Height(mm) | Height of Diamond Layer | Chamfer of Diamond Layer |
| 0808 | 8.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1008 | 10.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1308 | 13.44±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1313 | 13.44±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1608 | 16.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1613 | 16.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1616 | 16.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1908 | 19.0±0.05 | 8.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1913 | 19.0±0.05 | 13.00±0.1 | 2.0±0.1 | 0.41±0.05 |
| 1916 | 19.0±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2216 | 22.22±0.05 | 16.0±0.1 | 2.0±0.1 | 0.41±0.05 |
| 2219 | 22.22±0.05 | 19.0±0.1 | 2.0±0.1 | 0.41±0.05 |
1.High hardness, high wear resistance, high impact resistance.
2. The service life is 5-10 times longer than ordinary cemented
carbide, which significantly reduces the frequency of replacing
drill bits.
3. Effective and stable drilling speed, protect equipment and
reduce drilling cost (accounting for 30%-40% of total cost)
Our Principle
We adhere to the principles of high quality, high quality service, and innovation. We also insist on providing efficient products and excellent service. Please feel free to contact us if you are interested in our drills. We look forward to working with you!
FAQ
1. Are you a trading company or manufacturer?
We have been a professional manufacturer of PDC bits since 2013.
2. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
3. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
4. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
|
|
