| Brand Name : | Hainaisen |
| Model Number : | 8-1/2HS6523DA |
| Certification : | ISO 9001 |
| Price : | To be negotiable |
| Payment Terms : | T/T, L/C |
| Supply Ability : | 20pcs per day |
| Delivery Time : | 5-7 business days |

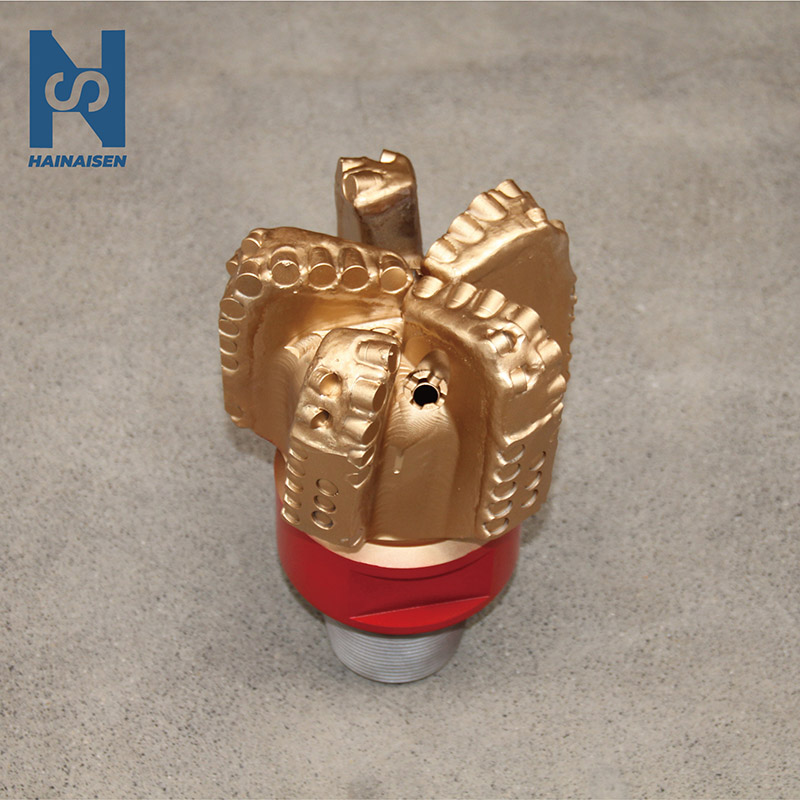

8-1/2 Inch 5 Blades Steel Body PDC Drilling Bit Oil Gas Rock Bits
Characteristics:
1. The crown surface of the drill bit is the middle casting
surface. It can increase the arc length in heavily worn locations
to insert more PDC cutters for better wear resistance.
2. The taper surface is shallow, so the drill has good
directionality, good cleaning effect and strong aggressiveness.
3. The center-to-center distance of the drill head is large, so
that the crown of the drill head has a larger impact resistance
area.
4. The PDC tool angle is 16-26°, which makes the drill bit have
higher cutting performance and impact resistance.
5. On the shoulder part of the bit,it is welded by double-row PDC
cutters so that they can drill and abrase simultaneously and
complement each other and work together. They undetake respectively
the cutting task so that the bits can drill in a high speed.
6. The long gauge surface is welded by double-row PDC cutter gauge
teeth so that the bit has higher abrasion resistance and better
protecting gauge effect.Meanwhile, the PDC cutters can be
effectively used to improve the bit's stability during the
drilling.
| PRODUCT SPECIFICATIONS | |
| Size | 8-1/2 inch (Φ215.9mm) |
| Model number | 8-1/2HS6523DA |
| Body type | High Manganese Steel |
| Number of blade | 5 |
| Primary PDC cutter size | 1613 |
| Number of nozzle | 5 |
| Diameter of nozzle | 16mm |
| Gauge length | 68mm |
| API connection | API 4-1/2 REG |
| Make-Up Torque(KN.m) | 16.3~21.7(4.79)KN·m(Mpa) |
| Suitable formation | Abrasive formation |
| Weight On Bit(WOB) | 4-16 T |
| Rotary Speed(RPM) | 60-240r/min |
| Application | Oil & Nature Gas |
| Quality | High Level |
| Package | Iron Case |
| MOQ | 5 Pieces |
| Certificate | ISO 9001 |
| OEM | Yes |
| Customized Size | Yes |
Package&Delivery
Our drill bits will be shipped out within 7 days after the 50%/full payment is confirmed.
We ship the bits by sea, by air. Or if you have any other demands, please feel free to let us know.
Our Principle
We are insisting in the principle of high quality, superior service and the courage to innovate. We are also adhering to providing the efficient products and excellent services. If you are interested in our drill bits, please feel free to contact us. We are looking forward to cooperating with you!
FAQ
1. Are you a trading company or manufacturer?
We have been a professional manufacturer of PDC bits since 2013.
2. Whether accept customized according to clients' requirements?
Yes, We accept customized products, no matter what size and what type. Please feel free to contact us.
3. About lead time and shipping time?
The lead time depends on the quantity of the order. Usually, it will take 3-5 days to ship to Tianjin Port or XI'AN Airport, China. For the small order or urgent order, we can send you by air once the order is confirmed.
4. Is it produced according to the standard? And can I expect a quality product?
Yes, all our activities are accredited to ISO9001: 2015, both in products and services. At the same time, mature production technology will ensure the quality to satisfy the international request. We have strictly inspection in the production. Our bits are exported to the Middle East, Europe, North America, South America, Australia, and other countries and regions.
5. How do you guarantee your quality?
We select the advanced production technology and equipment, strictly control the whole production process, and inspect the finished drill bits. We can also make several design changes according to the customer's feedback, and finally ensure the customer's excellent drilling effect.
6. What is your payment terms?
Our payment terms: T/T (normally 30% deposit ,balance 70% before
shippment )
or LC at sight.
|
|
